GPS over Fiber
GPS signals, carried over fiber.
Deliver GPS to remote locations where significant signal loss or building constraints rule out long coax runs.
Dramatic cost savings from a scalable architecture.
Intelibs GPS over Fiber systems are designed to lower total cost of ownership. Optional Power over Ethernet (PoE) models can save up to 50% of TCO by reducing the need for electrical construction, utility metering and permits.
For large deployments with GPS receivers in multiple rooms, the scalable architecture, including Fiber Distribution Units (FDU) and Coax Distribution Units (CDU), can reduce TCO by more than five times compared with traditional solutions.
The GPS over Fiber family.
Choose the units your network needs, and request a brochure for any of them.
-
FEU
Front End Unit
Connects to the rooftop GPS antenna and converts the GPS radio signal to light for the BEU. Available with four GPS ports or as a compact two-port model, both in NEMA-4 enclosures.
-

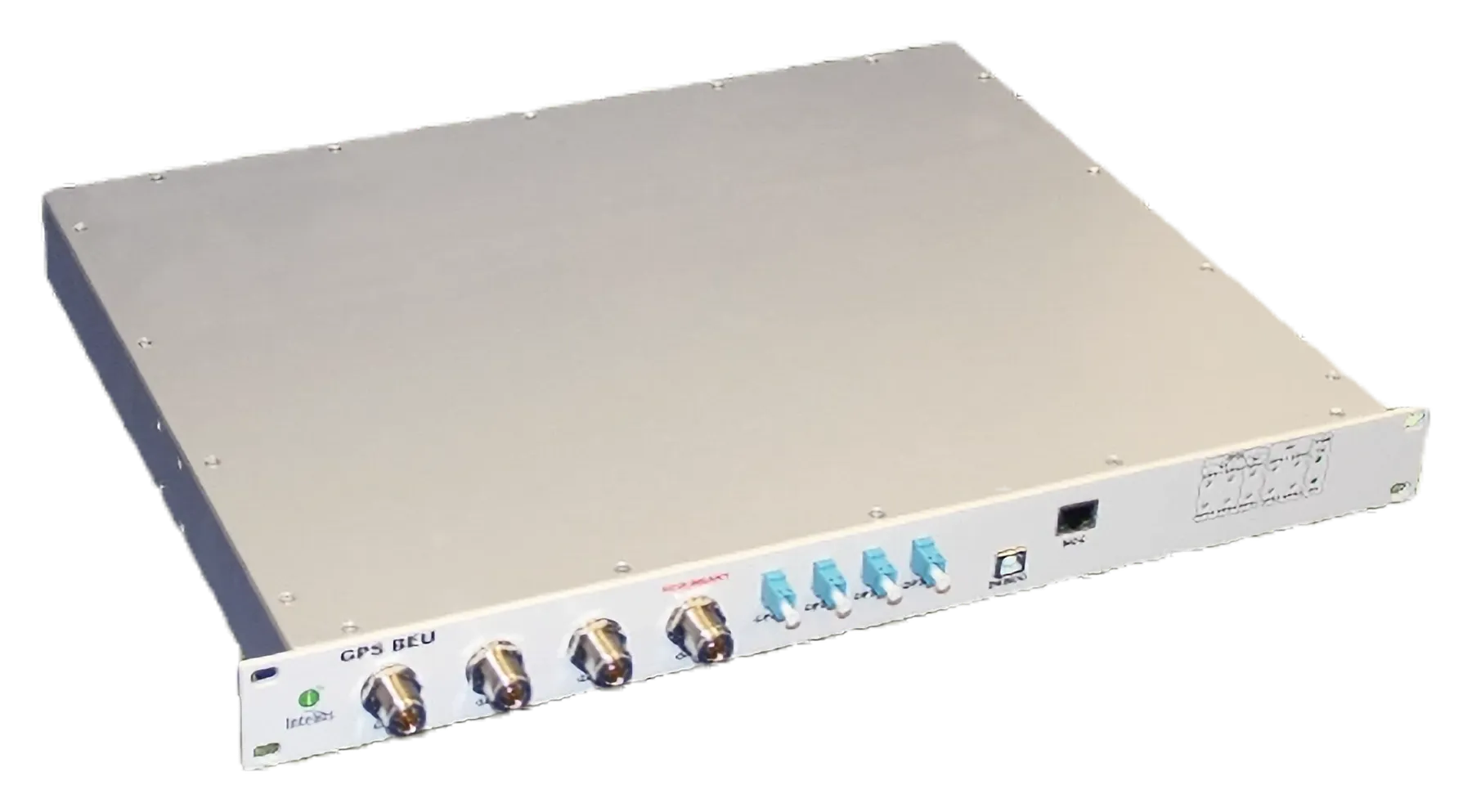

BEU
Back End Unit
Sits next to the GPS receiver equipment, such as a BTS or server, converting the optical signal back to RF and forwarding it over coax to the receiver.
-

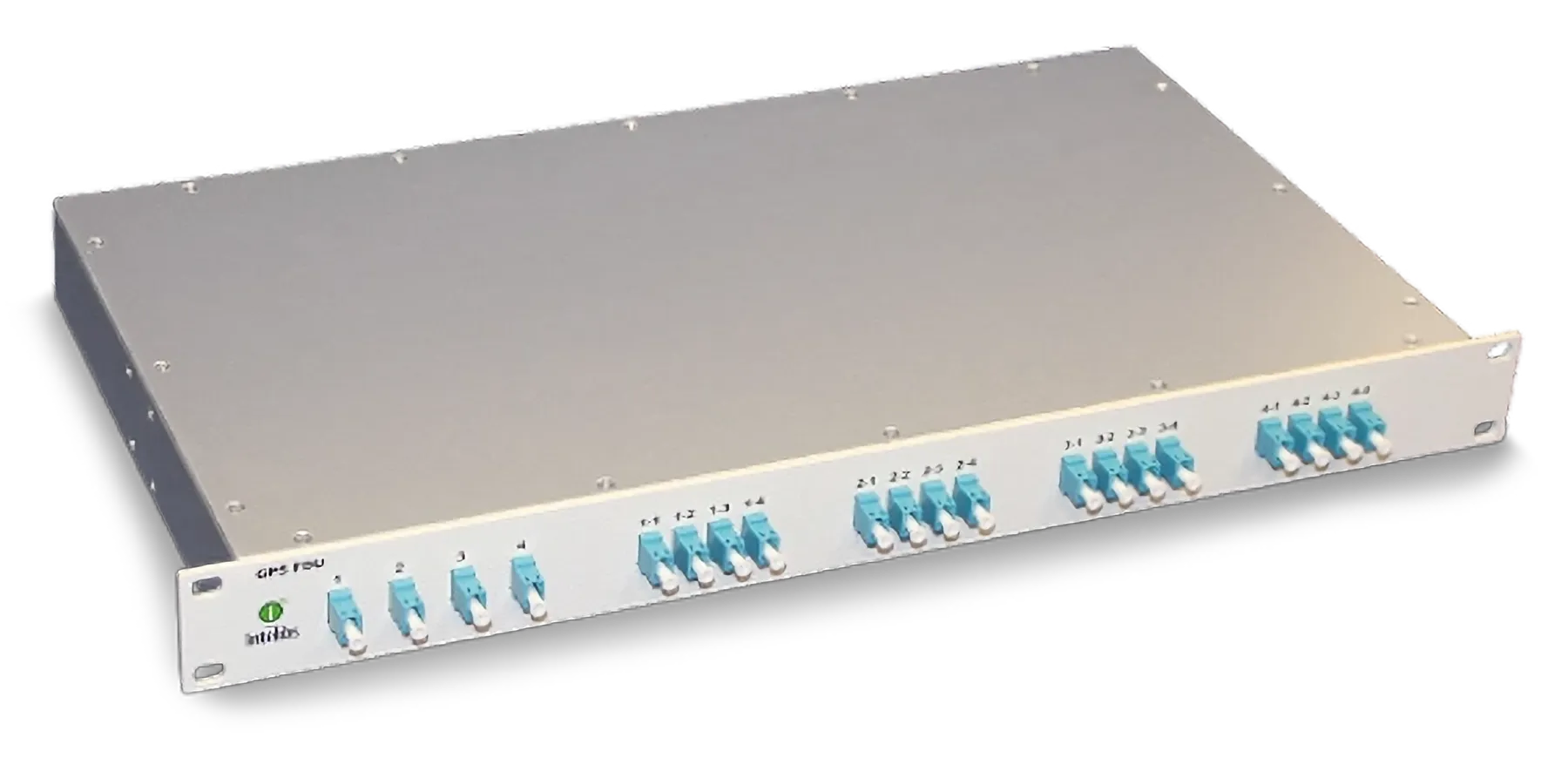

FDU
Fiber Distribution Unit
An optional unit for large installations that distributes the optical GPS signal from a single FEU to multiple BEUs.
-

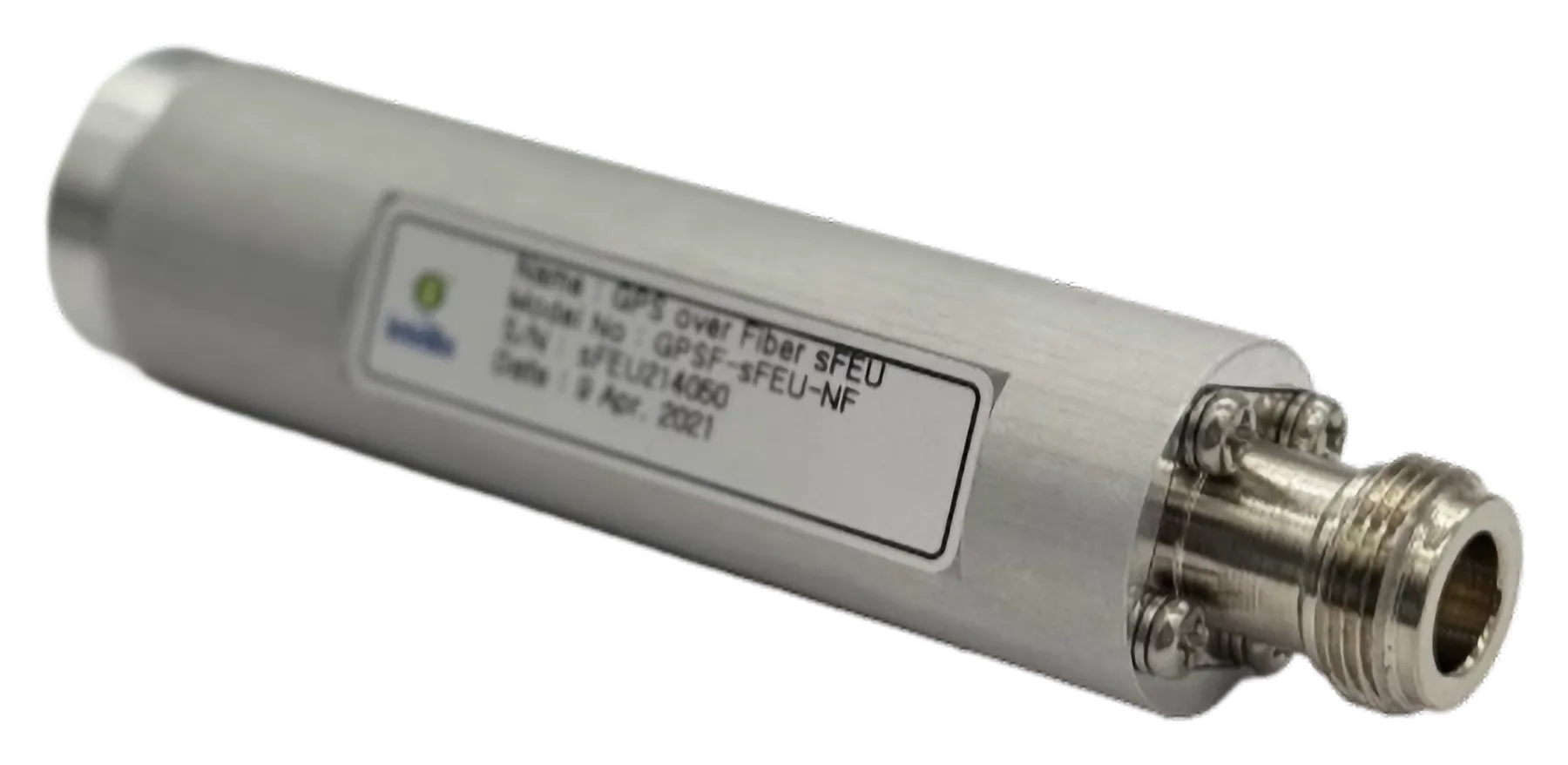

sFEU
Single-Port Front End Unit
Intelibs’ most compact GPS-to-optical converter, connecting directly to the GPS antenna for the most cost-effective GPS transport.
-

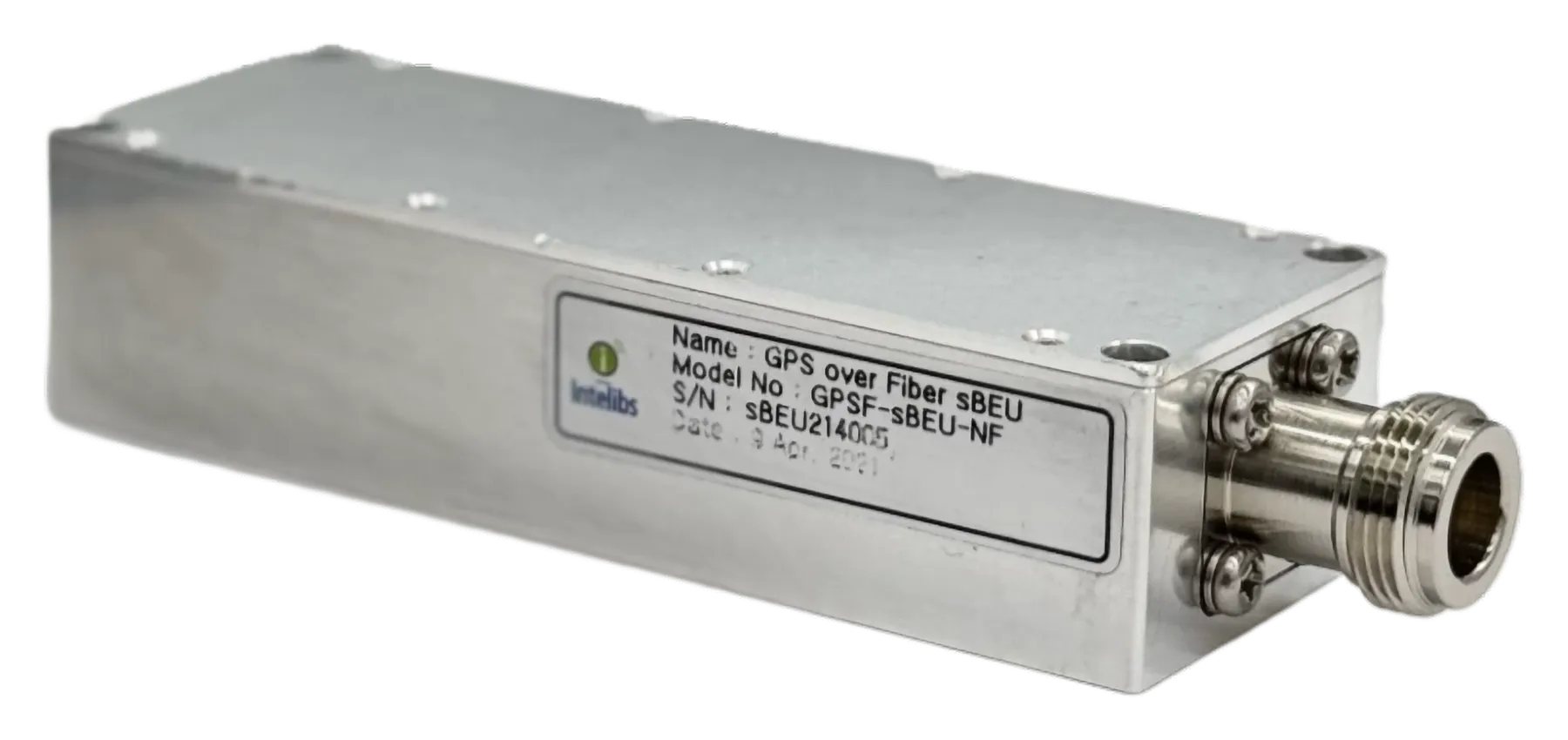

sBEU
Single-Port Back End Unit
A compact unit that converts the optical signal back to GPS. It can be powered by the GPS receiver with 5 Vdc over the coax connection.
-
mBEU
Modular Back End Unit
Supports up to two optical-to-RF converter modules and includes remote monitoring.
Built for mission-critical networks.
-
NEBS Level 3 certified
Qualified for installation inside carrier central offices and mission-critical network facilities.
-
Power over Ethernet
Power the rooftop FEU from an equipment room with backup generator or battery, with no electrical work on the roof.
-
High-performance RF filter
A proprietary filter in the FEU rejects interference from outside the GPS frequency.
-
Scalable and redundant
FDUs and CDUs serve many receivers from one FEU, with hot-standby redundancy.
-
Remote monitoring
A Web/SNMP-based portal shows system status in real time, including GPS reception at the FEU.

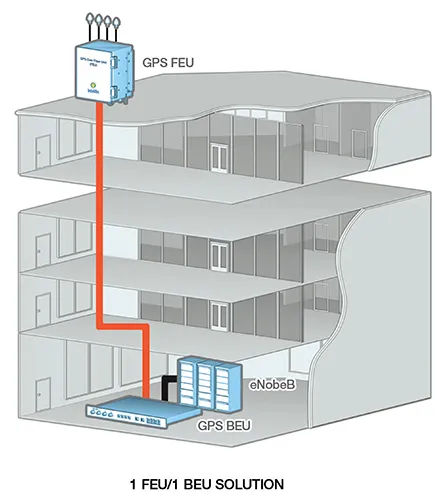

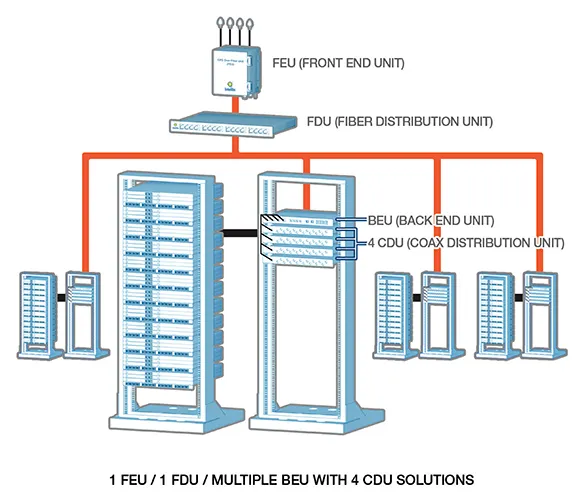

System configurations.
Where it’s used.
- Timing source for wireless telecommunications network equipment
- Satellite communication and broadcast systems
- Military and defense systems
- Maritime GPS
- Test and measurement
- GIS and location services for underground applications
Need help choosing the right units?
Tell us about your network. Our engineers will recommend a configuration and send the brochures you need.
